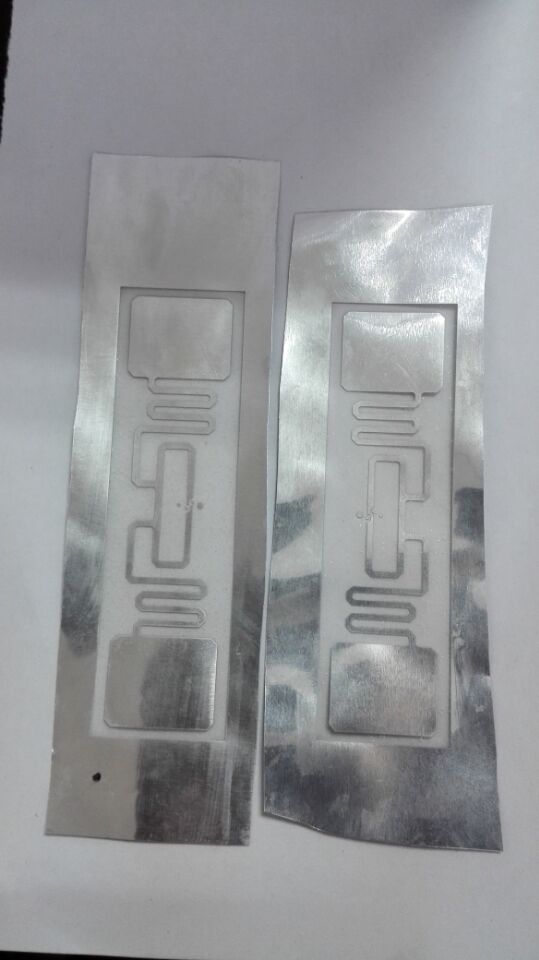

MH300 RFID Antenna Making Machine
- 详情
INTERNAL STRUCTURE
Laser power 20W
---Power supply
0-20A continuous adjustable switch power
External power supply single phase 220V, Max. power 1KW
--- Mirror
Beam reflector five times before expanding
---Galvanometer
High quality high-speed high-precision vibration lens
---Scanner
Resolution 0.001mm
Repeat precision 0.003mm
Linear scanning speed Max 7,000mm/s depending on the material
---F-θ lens
Wavelength 1064nm
Focal length f =160mm
Laser
---1064nm fiber laser generatorLaser power 20W
---Power supply
0-20A continuous adjustable switch power
External power supply single phase 220V, Max. power 1KW
Optical system
---1064nm high galvanometer accuracy reflection, focused beam system--- Mirror
Beam reflector five times before expanding
---Galvanometer
High quality high-speed high-precision vibration lens
---Scanner
Resolution 0.001mm
Repeat precision 0.003mm
Linear scanning speed Max 7,000mm/s depending on the material
---F-θ lens
Wavelength 1064nm
Focal length f =160mm
Working scope 120mm×120mm
Computer and control system
---Control system
PCI Bus DA Control Card/Interface
---Industrial Computer
Processor 2.6GHz, Memory≥2GB, Hard Disk≥500GB, 17” LCD, Chinese/English Windows Operation System
Software
Software is Windows interface, the Chinese/English-language Operation System is compatible with Photoshop, CorelDRAW, AutoCAD and other CAD software; can be achieved in both Chinese and English words, time, dates, barcodes, serial numbers and other markings, and the output in both Chinese and English graphics, all types of barcodes, two-dimensional codes.
---Powerful Function: The marking software is using Visual Basic, users can take advantage of 32 bits technology, and marking software is running in Windows XP/7. The Marking Speed nearly twice faster than traditional methods.
----Friendly Interface: The marking software allows personalized User Setting Interface, software can be adapted to individual requirements of use
---Control system
PCI Bus DA Control Card/Interface
---Industrial Computer
Processor 2.6GHz, Memory≥2GB, Hard Disk≥500GB, 17” LCD, Chinese/English Windows Operation System
Software
Software is Windows interface, the Chinese/English-language Operation System is compatible with Photoshop, CorelDRAW, AutoCAD and other CAD software; can be achieved in both Chinese and English words, time, dates, barcodes, serial numbers and other markings, and the output in both Chinese and English graphics, all types of barcodes, two-dimensional codes.
---Powerful Function: The marking software is using Visual Basic, users can take advantage of 32 bits technology, and marking software is running in Windows XP/7. The Marking Speed nearly twice faster than traditional methods.
----Friendly Interface: The marking software allows personalized User Setting Interface, software can be adapted to individual requirements of use
